Panasonic EZ Installation

Nationwide Installers Available in Most States

Do It Your-Self Installation
EZ Phone systems offers services by phone to help you with your Panasonic KX-T Installation.  A do-it-your-selfer can perform a Panasonic KX-T installation if the KX-T Installation cable connector kit is purchased.  Please follow these instructions as well as your Installation CD which your will receive with your Panasonic Telephone Equipment

Do-it-yourself installation.  The Panasonic EZ Installation cable connector kit and installation CD makes installing the Panasonic KX-T a breeze.  Click on the link on the right side of the page for an exploded view of the Panasonic EZ Installation cable connector kit.  After you have followed the instructions on this page and in the Panasonic EZ Installation CDROM you will receive with your phone system, your phone system will be ready to power up.  All Panasonic phone systems KX-T are plug and play.  You will be ready to send and receive phone calls.

NOTE: 1 pair of wires is required on all incoming phone lines and 2 wires is required on all phone extensions.  A 66 Block termination punch down tool is also required for installation.

Punch down the appropriate pair of wires for each terminal.  For example, the 101R, 101T, 101P& 101G terminals are the terminals for the first phone extension which is extension 101, and the Line 1R and the Line 1T terminals are for the first incoming telco line witch is Line 1.





Punch Down Block Schematic

RJ61X

66 Block

Block Term

Color Code

Function

Cable
1

1
2
3
4
5
6
7
8

Wht-Blue
Blue-Wht
Wht-Orange
Orange-Wht
Wht-Green
Green-Wht
Wht-Brown
Brown-Wht

101 T
101 R
101 P
101 G
102 T
102 R
102 P
102 G

Cable
2

9
10
11
12
13
14
15
16

Wht-Blue
Blue-Wht
Wht-Orange
Orange-Wht
Wht-Green
Green-Wht
Wht-Brown
Brown-Wht

103 T
103 R
103 P
103 G
104 T
104 R
104 P
104 G

Cable
3

17
18
19
20
21
22
23
24

Wht-Blue
Blue-Wht
Wht-Orange
Orange-Wht
Wht-Green
Green-Wht
Wht-Brown
Brown-Wht

105 T
105 R
105 P
105 G
106 T
106 R
106 P
106 G

Cable
4

25
26
27
28
29
30
31
32

Wht-Blue
Blue-Wht
Wht-Orange
Orange-Wht
Wht-Green
Green-Wht
Wht-Brown
Brown-Wht

107 T
107 R
107 P
107 G
108 R
108 T
108 P
108 G

Cable
5
Un Used

33
34
35
36
37
38
39
40

Wht-Blue
Blue-Wht
Wht-Orange
Orange-Wht
Wht-Green
Green-Wht
Wht-Brown
Brown-Wht

Un Used
Un Used
Un Used
Un Used
Un Used
Un Used
Un Used
Un Used

Cable
6

41
42
43
44
45
46
47
48

Wht-Blue
Blue-Wht
Wht-Orange
Orange-Wht
Wht-Green
Green-Wht
Wht-Brown
Brown-Wht

Un Used
Un Used
Line 1T
Line 1R
Line 2T
Line 2R
Line 3T
Line 3R

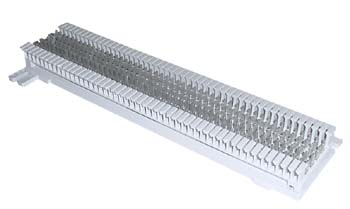

The above diagram is a schematic view of the telco 66 Block provided in the installation kit.  Click here for a exploded view of a 66-Block.  The installer will notice that there are 2 empty terminals on the bottom of the 66 Block. That is normal.
